WP10H Series · 9.5 L · China Stage VI / Euro VI / Euro V / Euro III

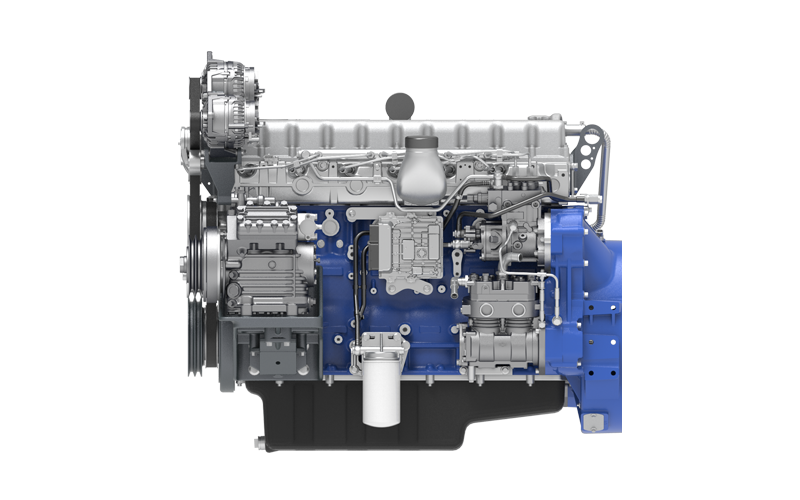

Rear-Engine Bus Engine WP10H
Models: WP10H375E62 · WP10H400E62 · WP10H375E50 · WP10H400E50A · WP10H375E30 · WP10H400E30
For 12 m and 13 m rear-engine buses
276–294 kW / 375–400 Ps
Power range (kW / Ps)
1900 N·m / 1200–1300 rpm
Max torque speed (N·m / rpm)
At a glance
Supplied by an original Weichai diesel engine supplier, the Weichai WP10H is built as an Inline unit, with 9.5 L displacement. Rated output spans 276–294 kW (375–400 Ps). Peak torque reaches 1900 N·m. It is supplied to meet Euro VI emission requirements. Typical duty is rear-engine bus service.
Product Overview
The WP10H is a classic upgraded power model for buses. After several rounds of extreme-climate and complete-vehicle endurance evaluation it adapts strongly to operating conditions with high availability. Power reserve is substantial and output forceful, staying steady and composed under heavy loads on long-distance and mountain routes. Mature modular, integrated design with widely shared service parts and a simple maintenance routine makes later operation and upkeep effortless.
Product Advantages
- Strong power. Output covers 375-400 Ps with maximum torque of 1,900 N·m, handling all kinds of complex conditions.
- Fuel efficient. An upgraded engine structure, optimised combustion and after-treatment optimisation that lowers back pressure improve fuel saving further.
- Better quality. Optimised engine and silencer structure improves NVH quality for greater comfort.
Specifications
| Power range (kW / Ps) | 276-294/375-400 |
| Max torque speed (N·m / r/min) | 1900/1200-1300 |
| Emission standard | China Stage VI / Euro VI / Euro V / Euro III |
| Fuel | Diesel |
| Engine type | Inline |
| Number of cylinders | 6 |
| Valves | 4 |
| Displacement (L) | 9.5 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | Coach, tourism, fleet |
| Engine dimensions (L×W×H) (mm) | 1247×1094×1267 |
| Weight (G.W.) (kg) | 815 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed (kW / rpm) | Max torque / speed (N·m / rpm) | Displacement (L) | Emission standard | Technology route | Application | Valves | Use | Type | Aspiration |
|---|---|---|---|---|---|---|---|---|---|---|
| WP10H375E62 | 276/1900 | 1800/1000-1400 | 9.5 | China Stage VI, Euro VI | Common rail + DOC + DPF + SCR | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
| WP10H400E62 | 294/1900 | 1900/1200-1300 | 9.5 | China Stage VI, Euro VI | Common rail + DOC + DPF + SCR | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
| WP10H375E50 | 276/1900 | 1800/1000-1400 | 9.5 | Euro V | Common rail + SCR | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
| WP10H400E50A | 294/1900 | 1900/1200-1300 | 9.5 | Euro V | Common rail + SCR | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
| WP10H375E30 | 276/1900 | 1800/1000-1400 | 9.5 | Euro III | Common rail | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
| WP10H400E30 | 294/1900 | 1900/1200-1300 | 9.5 | Euro III | Common rail | Coach, tourism, fleet | 4 | Bus | Inline | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP10H375E62), the required quantity and your destination port.
Technical details
The Weichai WP10H is built on a Inline configuration with 6 cylinders and 4 valves per cylinder architecture. Displacement is 9.5 L. Intake is turbocharged, intercooled. It is offered for diesel operation. For installation planning, the unit has overall dimensions of 1247×1094×1267 and a dry weight of 815 kg.
Typical applications
The Weichai WP10H is specified for rear-engine bus duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Rear-engine bus
WP10H frequently asked questions
What is the power range of the Weichai WP10H?
The WP10H covers 276–294 kW (375–400 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
What peak torque does the WP10H deliver?
Maximum torque reaches 1900 N·m. Torque is developed from 1200-1300 r/min. This figure governs how the machine pulls away from low engine speed, so check it against your gearbox ratios and duty cycle.
Which emission standard does the WP10H meet?
This unit is offered to Euro VI. Tell us your destination market and we will confirm the certification route before shipment.
Is the WP10H a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP10H shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP10H?
The WP10H is built on a Inline, 6 cylinders, 9.5 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
