WP17T Methanol Series · 16.6 L · None

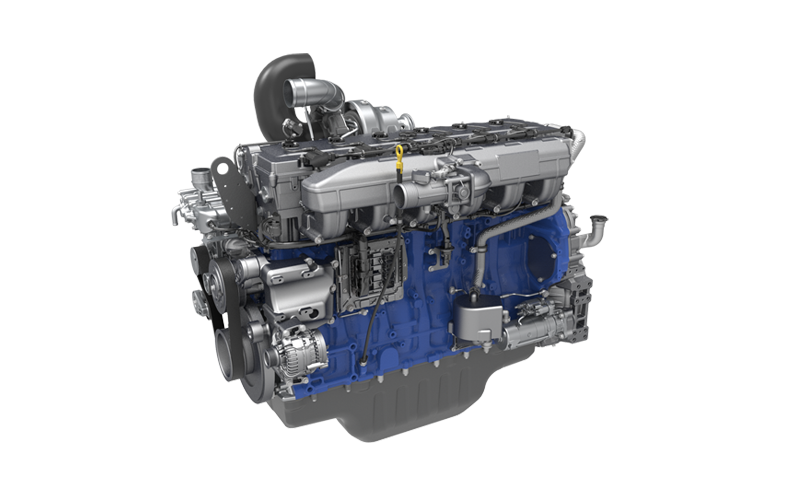

Excavator Engine WP17T Methanol
Models: WP17TG585A0ME
For 85-135 t hybrid excavators
430 kW / 585 Ps
Power range (kW / Ps)
2900 N·m / 1200–1400 rpm
Max torque speed (N·m / rpm)
At a glance
Supplied by an original Weichai diesel engine supplier, the Weichai WP17T Methanol is built as an Inline unit, with 16.6 L displacement. Rated output spans 430 kW (585 Ps). Peak torque reaches 2900 N·m. Typical duty is excavator service.
Product Overview
The WP17T methanol engine has higher power density, with maximum power up to 430 kW. It is a key Weichai product for the new-energy and clean-energy market.
Product Advantages
- Clean and environmentally friendly. It runs on methanol fuel (CH₃OH): compared with conventional diesel, carbon emissions drop by about 30% and particulate emissions by more than 90%.
- Highly efficient. The engine runs in its best economy zone with strong performance and low methanol consumption, meeting different duty cycles and working environments; a high-efficiency turbocharging system and intelligent combustion control push thermal efficiency above 45%, and the cost of use is more than 40% below a diesel engine, giving clear long-term economic benefit.
- Reliable and durable. Key components such as the fuel injection system are strengthened with corrosion-resistant materials for the characteristics of methanol, so the engine copes with high humidity, low temperature and other complex conditions; key component life reaches more than 2 million km (B10 life) and the maintenance interval is extended by 30%, lowering whole-life cost.
Specifications
| Power range (kW / Ps) | 430/585 |
| Max torque speed (N·m / r/min) | 2900/1200-1400 |
| Emission standard | None |
| Fuel | methanol |
| Engine type | Inline |
| Number of cylinders | 6 |
| Valves | 4 |
| Displacement (L) | 16.6 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | 85-135 t hybrid excavator |
| Engine dimensions (L×W×H) (mm) | 1520×1097×1475 |
| Weight (G.W.) (kg) | 1500 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed (kW / rpm) | Max torque / speed (N·m / rpm) | Displacement (L) | Emission standard | Technology route | Application | Valves | Use | Type | Aspiration |
|---|---|---|---|---|---|---|---|---|---|---|
| WP17TG585A0ME | 430/1600 | 2900/1200-1400 | 16.6L | None | multi-point PEI + lean burn | 85-135 t hybrid excavator | 4 | excavator | Inline 6-cylinder, four-stroke | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP17TG585A0ME), the required quantity and your destination port.
Technical details
The Weichai WP17T Methanol is built on a Inline configuration with 6 cylinders and 4 valves per cylinder architecture. Displacement is 16.6 L. Intake is turbocharged, intercooled. It is offered for methanol operation. For installation planning, the unit has overall dimensions of 1520×1097×1475 and a dry weight of 1500 kg.
Typical applications
The Weichai WP17T Methanol is specified for excavator duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Excavator
WP17T Methanol frequently asked questions
What is the power range of the Weichai WP17T Methanol?
The WP17T Methanol covers 430 kW (585 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
What peak torque does the WP17T Methanol deliver?
Maximum torque reaches 2900 N·m. Torque is developed from 1200-1400 r/min. This figure governs how the machine pulls away from low engine speed, so check it against your gearbox ratios and duty cycle.
Is the WP17T Methanol a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP17T Methanol shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP17T Methanol?
The WP17T Methanol is built on a Inline, 6 cylinders, 16.6 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
