WP4.6N Series · 4.58 L · Stage IIIB / India BS V / Stage V / China Non-Road Stage IV

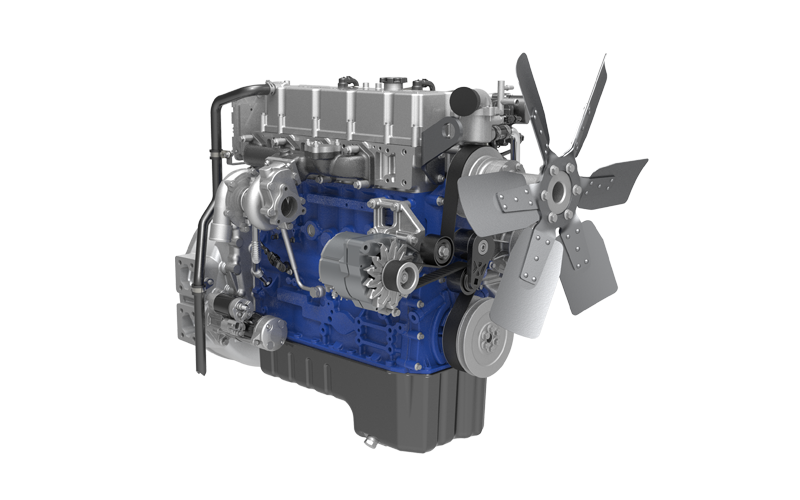

Wheel Loader Engine WP4.6N
Models: WP4.6NG135E440 · WP4.6NG135E441 · WP4.6NG135E442 · WP4.6NG135E670 · WP4.6NG135E671 · WP4.6NG150E671
For 3 t wheel loaders
99–100 kW / 135–150 Ps
Power range (kW / Ps)
610-640 N·m / 1300–1500 rpm
Max torque speed (N·m / rpm)
At a glance
The WP4.6N comes from an original Weichai diesel engine supplier and is built as an Inline 4-cylinder, four-stroke unit, with 4.58 L displacement. Rated output spans 99–100 kW (135–150 Ps). It is supplied to meet Stage IIIB emission requirements. Typical duty is wheel loader service.
Product Overview
The WP4.6N diesel engine is a new-generation Weichai platform model integrating new technical results, meeting Stage V, India BS V, China Non-Road Stage IV and Stage IIIB emissions and suited to 3 t wheel loaders.
Product Advantages
- Adaptability. Operates from -25°C to 50°C and at 4000 m altitude; modular design makes servicing convenient.
- Performance. High low-speed torque, strong acceleration and high work efficiency, with maximum torque up to 624 N·m.
- Economy. A high-pressure common-rail system with high injection pressure and good atomisation gives a minimum fuel consumption rate 5 g/kW·h below competing products.
- Reliability. A ladder-type strengthened block with a strengthened one-piece cylinder head, validated by 20000 h of endurance testing across operating conditions to secure engine life.
- Comfort. Pilot and post injection optimised across the whole map with combustion noise comprehensively improved; a rear gear train keeps noise low.
Specifications
| Power range (kW / Ps) | 99-100/135-150 |
| Max torque speed (N·m / r/min) | 610-640/1300-1500 |
| Emission standard | Stage IIIB / India BS V / Stage V / China Non-Road Stage IV |
| Fuel | Diesel |
| Engine type | Inline 4-cylinder, four-stroke |
| Number of cylinders | 4 |
| Valves | 4 |
| Displacement (L) | 4.58 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | 3t |
| Engine dimensions (L×W×H) (mm) | 1045×796×1426 |
| Weight (G.W.) (kg) | 450±10 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed | Max torque / speed | Displacement | Emission standard | Technology route | Application | Valves | Aspiration |
|---|---|---|---|---|---|---|---|---|
| WP4.6NG135E440 | 99/2000 | 625/1300-1500 | 4.58 | Stage IIIB | EGR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E441 | 99/2200 | 630/1400-1600 | 4.58 | Stage IIIB | EGR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E442 | 99/2300 | 610/1400-1600 | 4.58 | Stage IIIB | EGR | 3t | 4 | Turbocharged, intercooled |
| Model | Rated power / speed | Max torque / speed | Displacement | Emission standard | Technology route | Application | Valves | Aspiration |
|---|---|---|---|---|---|---|---|---|
| WP4.6NG135E670 | 99/2200 | 630/1300-1500 | 4.58 | India BS V | SCR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E671 | 99/2300 | 620/1300-1500 | 4.58 | India BS V | SCR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG150E671 | 110/2200 | 640/1400-1600 | 4.58 | India BS V | SCR | 3.5t | 4 | Turbocharged, intercooled |
| Model | Rated power / speed | Max torque / speed | Displacement | Emission standard | Technology route | Application | Valves | Aspiration |
|---|---|---|---|---|---|---|---|---|
| WP4.6NG135E670 | 99/2200 | 630/1300-1500 | 4.58 | Stage V | SCR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E671 | 99/2300 | 620/1300-1500 | 4.58 | Stage V | SCR | 3t | 4 | Turbocharged, intercooled |
| Model | Rated power / speed | Max torque / speed | Displacement | Emission standard | Technology route | Application | Valves | Aspiration |
|---|---|---|---|---|---|---|---|---|
| WP4.6NG135E440 | 99/2000 | 625/1300-1500 | 4.58 | China Non-Road Stage IV | EGR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E441 | 99/2200 | 630/1400-1600 | 4.58 | China Non-Road Stage IV | EGR | 3t | 4 | Turbocharged, intercooled |
| WP4.6NG135E442 | 99/2300 | 610/1400-1600 | 4.58 | China Non-Road Stage IV | EGR | 3t | 4 | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP4.6NG135E440), the required quantity and your destination port.
Technical details
The Weichai WP4.6N is built on a Inline 4-cylinder, four-stroke configuration with 4 cylinders and 4 valves per cylinder architecture. Displacement is 4.58 L. Intake is turbocharged, intercooled. It is offered for diesel operation. For installation planning, the unit has overall dimensions of 1045×796×1426 and a dry weight of 450±10 kg.
Typical applications
The Weichai WP4.6N is specified for wheel loader duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Wheel loader
WP4.6N frequently asked questions
What is the power range of the Weichai WP4.6N?
The WP4.6N covers 99–100 kW (135–150 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
Which emission standard does the WP4.6N meet?
This unit is offered to Stage IIIB. Tell us your destination market and we will confirm the certification route before shipment.
Is the WP4.6N a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP4.6N shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP4.6N?
The WP4.6N is built on a Inline 4-cylinder, four-stroke, 4 cylinders, 4.58 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
