WP3.2 Series · 3.2 L · Non-road Stage IV

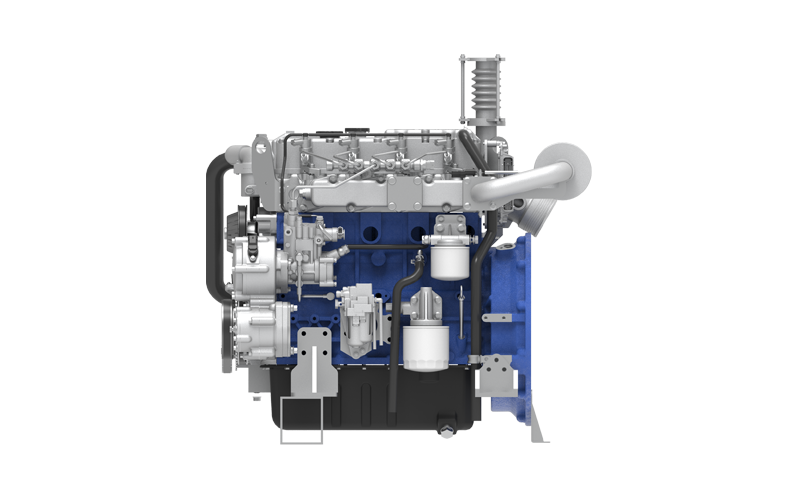

WP3.2 Series Marine Engine
Models: WP3.2C34-15E421 · WP3.2C37-18E421 · WP3.2C41-15E421 · WP3.2C50-24E421
Fuel type: ordinary diesel
25-36.8
Power range (kW)
1500-2400
Speed range (r/min)
Product Advantages
- Safe and reliable. Key components use high-quality Weichai suppliers and are developed according to the high reliability requirements of the marine engine industry.
- Has undergone bench test and high temperature, extreme cold and high altitude test verification to ensure the reliability of key components, with a whole-engine time between overhauls (TBO) of more than 8000h.
- Complete self-diagnosis system, complete failure-protection mode and safe control strategy.
- Fuel efficient. Uses an electronically controlled high-pressure common rail fuel injection system with precise control of injection pressure and injection timing, full fuel atomization and a wide economical fuel consumption range.
- Strong power. The control unit provides precise control, with high injection pressure, small speed fluctuation and strong power performance.
- Low-speed high-torque design with a large torque reserve, quick response and fast acceleration.
- Comfortable and eco-friendly. Whole-engine NVH optimization and matching, with noise-reduction designs such as the enclosed flywheel housing to reduce noise leakage.
- Uses electronically controlled multiple injection to greatly reduce vibration and noise.
- Water-jacketed exhaust manifold and exhaust tail pipe reduce the cabin temperature.
- Meets the emission standard of China non-road Stage IV.
- Highly practical. Optional configurations such as internet smart instruments and vibration damping pads meet different customer needs.
- Receives and outputs multiple control signals to meet automatic control requirements.
Specifications
| Engine type | four-stroke, water-cooled, inline, naturally aspirated |
| Bore / stroke (mm) | 98×105 |
| Number of cylinders | 4 |
| Displacement (L) | 3.2 |
| Torque reserve (%) | 37 |
| Oil consumption rate (g/kW·h) | ≤0.1 |
| Minimum fuel consumption rate (g/kW·h) | 209 |
| Idle speed (r/min) | 650±20 |
| Noise (dB(A)) | ≤96 |
| Crankshaft rotation direction | clockwise (viewed from the free end) |
| Overall dimensions (L×W×H) (mm) | 898×612×722 |
| Net weight (kg) | 325 |
Note: product parameters and images are for reference only and are subject to change without notice.
Note: for products marked with an asterisk (*), the delivery time is subject to the manufacturer’s confirmation; the parameters and model line-up are for reference only, and delivery dates and fishing-vessel line-ups should be requested from us as formal documentation.
Model Line-up
| Series | Model | Aspiration | Power (kW / Ps) | Speed (r/min) | Technology route | Emission level | Power rating |
|---|---|---|---|---|---|---|---|
| WP3.2 | WP3.2C34-15E421 | naturally aspirated | 25/34 | 1500 | electronically controlled high-pressure common-rail pump | Non-road Stage IV | P1(MCR) |
| WP3.2 | WP3.2C37-18E421 | naturally aspirated | 27/37 | 1800 | electronically controlled high-pressure common-rail pump | Non-road Stage IV | P1(MCR) |
| WP3.2 | WP3.2C41-15E421 | naturally aspirated | 30/41 | 1500 | electronically controlled high-pressure common-rail pump | Non-road Stage IV | P1(MCR) |
| WP3.2 | WP3.2C50-24E421 | naturally aspirated | 36.8/50 | 2400 | electronically controlled high-pressure common-rail pump | Non-road Stage IV | P1(MCR) |
Request a Quote
Send the model designation (for example WP3.2C34-15E421), the required quantity and your destination port.
At a glance
As an original Weichai diesel engine supplier, we supply the WP3.2 Marine built as a four-stroke, water-cooled, inline, naturally aspirated unit, with 3.2 L displacement. Rated output spans 25–36.8 kW. It is supplied to meet Non-road Stage IV emission requirements. Typical duty is marine propulsion service.
Technical details
The Weichai WP3.2 Marine is built on a four-stroke, water-cooled, inline, naturally aspirated configuration with 4 cylinders architecture. Displacement is 3.2 L. It is offered for 209 operation. For installation planning, the unit has a dry weight of 325 kg and an idle speed of 650±20 r/min.
Typical applications
The Weichai WP3.2 Marine is specified for marine propulsion duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Fuel type: ordinary diesel
WP3.2 Marine frequently asked questions
What is the power range of the Weichai WP3.2 Marine?
The WP3.2 Marine covers 25–36.8 kW. Confirm the exact sub-model code before ordering, because output varies across the model line-up.
Which emission standard does the WP3.2 Marine meet?
This unit is offered to Non-road Stage IV. Tell us your destination market and we will confirm the certification route before shipment.
Is the WP3.2 Marine a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP3.2 Marine shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP3.2 Marine?
The WP3.2 Marine is built on a four-stroke, water-cooled, inline, naturally aspirated, 4 cylinders, 3.2 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
