WP2.5T Series · 2.45 L · China Stage VI

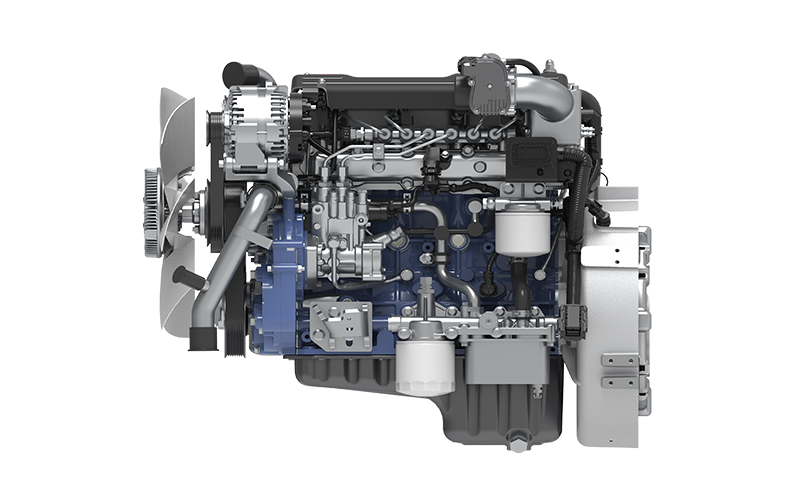

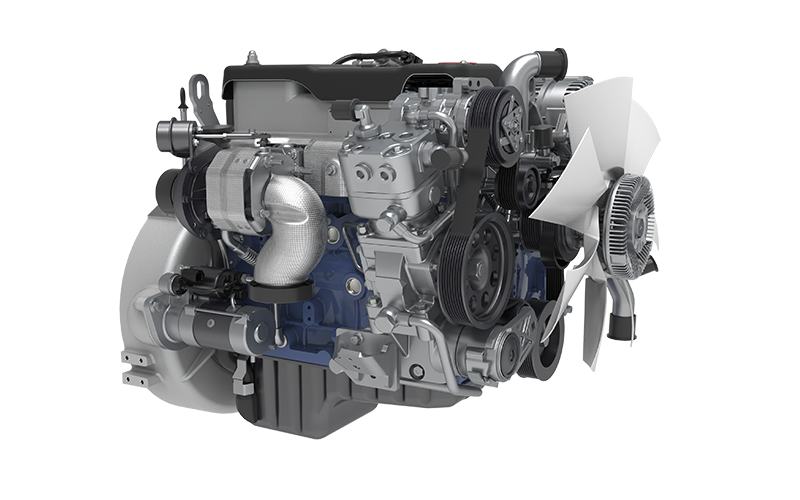

Light-Duty Dump Truck Engine WP2.5T
Models: WP2.5T140E62 · WP2.5T160E62 · WP2.5T170E62 · WP2.5T180E62A · WP2.5T180E62 · WP2.5T190E62
For 4×2 blue-plate dump trucks
100–133 kW / 136–181 Ps
Power range (kW / Ps)
500 N·m / 1400–1800 rpm
Max torque speed (N·m / rpm)
At a glance
As an original Weichai diesel engine supplier, we supply the WP2.5T built as an Inline unit, with 2.45 L displacement. Rated output spans 100–133 kW (136–181 Ps). Peak torque reaches 500 N·m. It is supplied to meet China Stage VI emission requirements. Typical duty is light-duty dump truck service.
Product Overview
A high-value power product for blue-plate dump trucks.
Product Advantages
- Performance. Optimised and upgraded structure with a high-efficiency turbocharger re-matched to the engine; maximum torque of 500 N·m delivers strong power and high transport efficiency.
- Economy. A newly developed high-efficiency fuel system together with optimised air system and ECU strategies cuts fuel consumption by 5-12 g/kW·h in the common operating zone compared with competing products.
- Reliability. A proven design with the block and cylinder-head structure further optimised for 10% higher strength; upgraded materials for the crankshaft, connecting rods and other critical parts increase service life by 50%, meeting the high-reliability requirement of the T series.
Specifications
| Power range (kW / Ps) | 100-133/136-181 |
| Max torque speed (N·m / r/min) | 500/1400-1800 |
| Emission standard | China Stage VI |
| Fuel | Diesel |
| Engine type | Inline |
| Number of cylinders | 4 |
| Valves | 4 |
| Displacement (L) | 2.45 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | Blue-plate cargo truck, special-purpose vehicle, dump truck |
| Engine dimensions (L×W×H) (mm) | 825×715×660 |
| Weight (G.W.) (kg) | 230 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed (kW / rpm) | Max torque / speed (N·m / rpm) | Displacement (L) | Emission standard | Technology route | Application | Valves | Use | Type | Aspiration |
|---|---|---|---|---|---|---|---|---|---|---|
| WP2.5T140E62 | 100/2900 | 340/1400-2400 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
| WP2.5T160E62 | 118/2900 | 400/1400-2400 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
| WP2.5T170E62 | 121/2900 | 450/1400-2000 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
| WP2.5T180E62A | 124/2900 | 450/1400-2000 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
| WP2.5T180E62 | 132/2900 | 500/1400-1800 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
| WP2.5T190E62 | 133/2900 | 495/1400-1800 | 2.45 | China Stage VI | High-efficiency SCR | Blue-plate cargo truck, special-purpose vehicle, dump truck | 2 | Truck | Inline | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP2.5T140E62), the required quantity and your destination port.
Technical details
The Weichai WP2.5T is built on a Inline configuration with 4 cylinders and 4 valves per cylinder architecture. Displacement is 2.45 L. Intake is turbocharged, intercooled. It is offered for diesel operation. For installation planning, the unit has overall dimensions of 825×715×660 and a dry weight of 230 kg.
Typical applications
The Weichai WP2.5T is specified for light-duty dump truck duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Truck
WP2.5T frequently asked questions
What is the power range of the Weichai WP2.5T?
The WP2.5T covers 100–133 kW (136–181 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
What peak torque does the WP2.5T deliver?
Maximum torque reaches 500 N·m. Torque is developed from 1400-1800 r/min. This figure governs how the machine pulls away from low engine speed, so check it against your gearbox ratios and duty cycle.
Which emission standard does the WP2.5T meet?
This unit is offered to China Stage VI. Tell us your destination market and we will confirm the certification route before shipment.
Is the WP2.5T a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP2.5T shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP2.5T?
The WP2.5T is built on a Inline, 4 cylinders, 2.45 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
