WP13 Methanol Series · 12.54 L · None

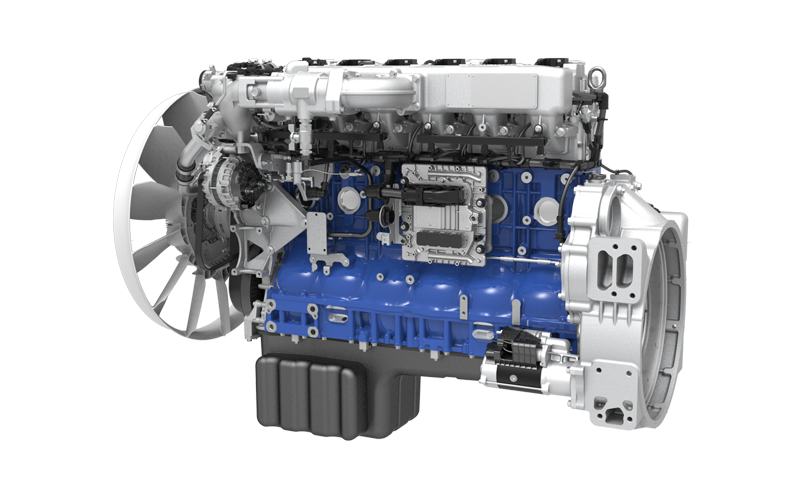

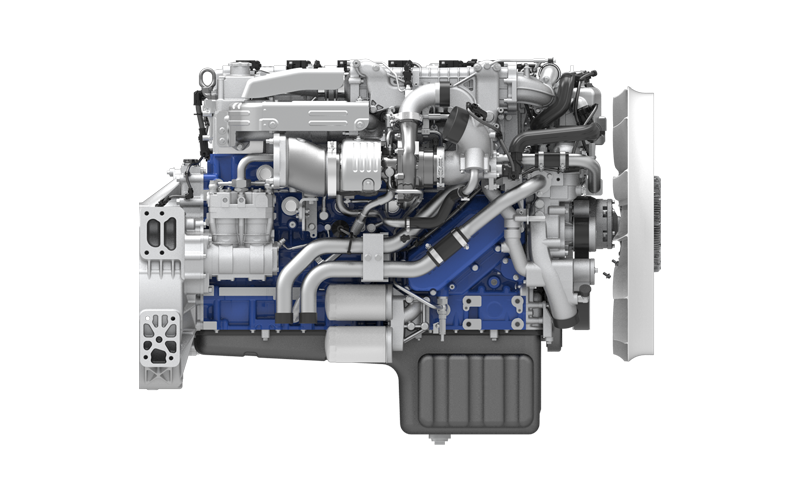

Wide-Body Dump Truck Engine WP13 Methanol
Models: WP13G480A0ME
For 130 T hybrid wide-body dump trucks
353 kW / 480 Ps
Power range (kW / Ps)
2100 N·m / 1200–1400 rpm
Max torque speed (N·m / rpm)
At a glance
As an original Weichai diesel engine supplier, we supply the WP13 Methanol built as an Inline unit, with 12.54 L displacement. Rated output spans 353 kW (480 Ps). Peak torque reaches 2100 N·m. Typical duty is wide-body dump truck service.
Product Overview
The WP13 methanol engine has higher power density with maximum power of 353 kW, strong performance and low methanol consumption; the cost of use falls by more than 40% against a diesel engine, it meets the requirements of different duty cycles and working environments, and the complete parts set has passed high-reliability validation.
Product Advantages
- High reliability. High-strength cast-iron block and steel pistons, with multi-point PFI and lean-burn technology; exhaust temperature is about 80°C lower than competing products, keeping maintenance cost as low as possible.
- Strong adaptability. Every environment, fully capable: dedicated strategies for cold-region starting and for thermal management in high heat, so harsh environments are handled with ease.
- High economy. Compared with a diesel wide-body dump truck, fuel cost is almost 50% lower, a clear economic advantage.
- Clean and low emission. A clean energy source whose products are mostly carbon dioxide and water, greatly reducing pollutant emissions, and becoming a key power support for the mining engineering sector as it moves towards zero carbon.
Specifications
| Power range (kW / Ps) | 353/480 |
| Max torque speed (N·m / r/min) | 2100/1200-1400 |
| Emission standard | None |
| Fuel | methanol |
| Engine type | Inline |
| Number of cylinders | 6 |
| Valves | 4 |
| Displacement (L) | 12.54 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | 130 T range-extended wide-body dump truck |
| Engine dimensions (L×W×H) (mm) | 1392×975×1142 |
| Weight (G.W.) (kg) | 1050 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed (kW / rpm) | Max torque / speed (N·m / rpm) | Displacement (L) | Emission standard | Technology route | Application | Valves | Use | Type | Aspiration |
|---|---|---|---|---|---|---|---|---|---|---|
| WP13G480A0ME | 353/1900 | 2100/1200-1400 | 12.54 | None | multi-point PEI + lean burn | 130 T range-extended wide-body dump truck | 4 | off-highway dump truck | Inline | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP13G480A0ME), the required quantity and your destination port.
Technical details
The Weichai WP13 Methanol is built on a Inline configuration with 6 cylinders and 4 valves per cylinder architecture. Displacement is 12.54 L. Intake is turbocharged, intercooled. It is offered for methanol operation. For installation planning, the unit has overall dimensions of 1392×975×1142 and a dry weight of 1050 kg.
Typical applications
The Weichai WP13 Methanol is specified for wide-body dump truck duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Off-highway dump truck
WP13 Methanol frequently asked questions
What is the power range of the Weichai WP13 Methanol?
The WP13 Methanol covers 353 kW (480 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
What peak torque does the WP13 Methanol deliver?
Maximum torque reaches 2100 N·m. Torque is developed from 1200-1400 r/min. This figure governs how the machine pulls away from low engine speed, so check it against your gearbox ratios and duty cycle.
Is the WP13 Methanol a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP13 Methanol shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP13 Methanol?
The WP13 Methanol is built on a Inline, 6 cylinders, 12.54 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
