WP15H Series · 15.33 L · China Non-Road Stage III / Euro Stage IIIA

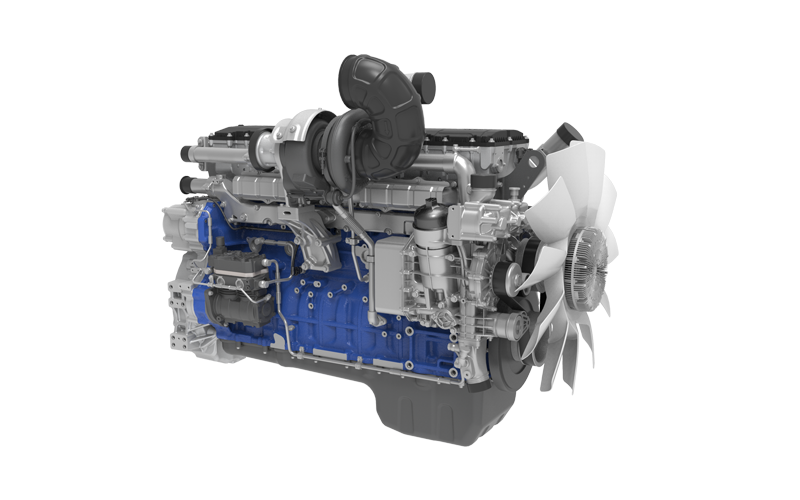

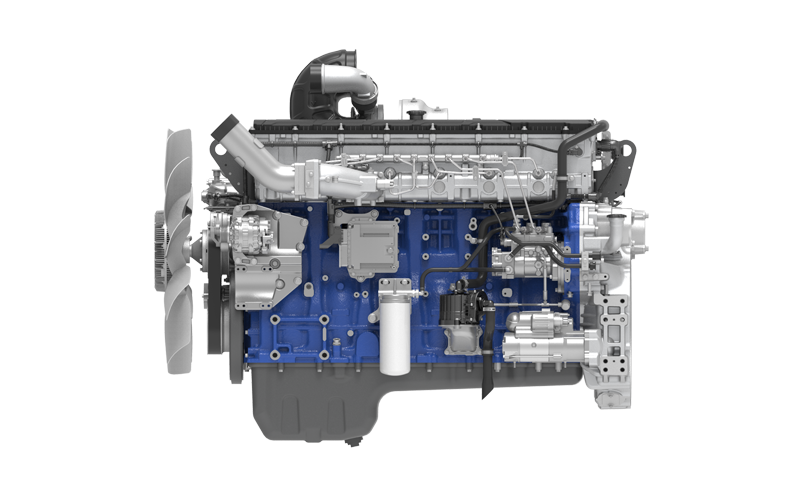

Wide-Body Dump Truck Engine WP15H
Models: WP15HG770E304 · WP15HG650E304
For 130-160 t wide-body dump trucks
477–566 kW / 649–770 Ps
Power range (kW / Ps)
3000 N·m / 1200–1600 rpm
Max torque speed (N·m / rpm)
At a glance
The WP15H comes from an original Weichai diesel engine supplier and is built as an Inline unit, with 15.33 L displacement. Rated output spans 477–566 kW (649–770 Ps). Peak torque reaches 3000 N·m. It is supplied to meet China Non-Road Stage III emission requirements. Typical duty is wide-body dump truck service.
Product Overview
High torque, strong power, low fuel consumption and high reliability, meeting harsh mining conditions such as high altitude, extreme cold, high vibration, high dust and high load.
Product Advantages
- Reliability. Strengthened core structure, newly designed for the high-speed and high-load applications of mining dump trucks, giving excellent reliability.
- Performance. Output of 566 kW and maximum torque 3000 N·m, with strong power and good vehicle integration.
- Economy. A high thermal-efficiency platform product with high peak-pressure design and optimised combustion, with a minimum fuel consumption rate better than competing products.
- Adaptability. Copes with high altitude (5300 m), extreme cold (-50°C), high vibration (twice that of road vehicles), high dust (130 times that of road vehicles) and high load (90% average load factor), with a 500 h oil-change interval and a low cost of use.
Specifications
| Power range (kW / Ps) | 477-566/649-770 |
| Max torque speed (N·m / r/min) | 3000/1200-1600 |
| Emission standard | China Non-Road Stage III / Euro Stage IIIA |
| Fuel | Diesel |
| Engine type | Inline |
| Number of cylinders | 6 |
| Valves | 4 |
| Displacement (L) | 15.33 |
| Aspiration | Turbocharged, intercooled |
| Vehicle application | 130 T wide-body dump truck |
| Engine dimensions (L×W×H) (mm) | 1535×1242×724(above the crankshaft centre) |
| Weight (G.W.) (kg) | 1430 |
Note: product parameters and images are for reference only and are subject to change without notice.
Model Line-up
| Model | Rated power / speed (kW / rpm) | Max torque / speed (N·m / rpm) | Displacement (L) | Emission standard | Technology route | Application | Valves | Use | Type | Aspiration |
|---|---|---|---|---|---|---|---|---|---|---|
| WP15HG770E304 | 566/1900 | 3000/1200-1600 | 15.33 | China Non-Road Stage III | CR | 130 T wide-body dump truck | 4 | off-highway dump truck use | Inline | Turbocharged, intercooled |
| WP15HG650E304 | 477/1900 | 3000/1200-1600 | 15.33 | Euro Stage IIIA | CR | 130 T wide-body dump truck | 4 | off-highway dump truck use | Inline | Turbocharged, intercooled |
Request a Quote
Send the model designation (for example WP15HG770E304), the required quantity and your destination port.
Technical details
The Weichai WP15H is built on a Inline configuration with 6 cylinders and 4 valves per cylinder architecture. Displacement is 15.33 L. Intake is turbocharged, intercooled. It is offered for diesel operation. For installation planning, the unit has overall dimensions of 1535×1242×724(above the crankshaft centre) and a dry weight of 1430 kg.
Typical applications
The Weichai WP15H is specified for wide-body dump truck duty. Confirmed applications include the following, and we can advise on suitability for your machine:
- Off-highway dump truck use
WP15H frequently asked questions
What is the power range of the Weichai WP15H?
The WP15H covers 477–566 kW (649–770 Ps). Confirm the exact sub-model code before ordering, because output varies across the model line-up.
What peak torque does the WP15H deliver?
Maximum torque reaches 3000 N·m. Torque is developed from 1200-1600 r/min. This figure governs how the machine pulls away from low engine speed, so check it against your gearbox ratios and duty cycle.
Which emission standard does the WP15H meet?
This unit is offered to China Non-Road Stage III. Tell us your destination market and we will confirm the certification route before shipment.
Is the WP15H a genuine Weichai engine?
Yes. Units are sourced through controlled supply channels to original factory specification and are supplied with export packing and documentation.
How is the WP15H shipped and how long does delivery take?
Engines are crated for export and consolidated at the port. Send your model designation, quantity and destination port for a firm quotation and lead time.
What is the configuration of the WP15H?
The WP15H is built on a Inline, 6 cylinders, 15.33 L of displacement layout. Send us your machine model if you need confirmation that this layout fits your installation.
